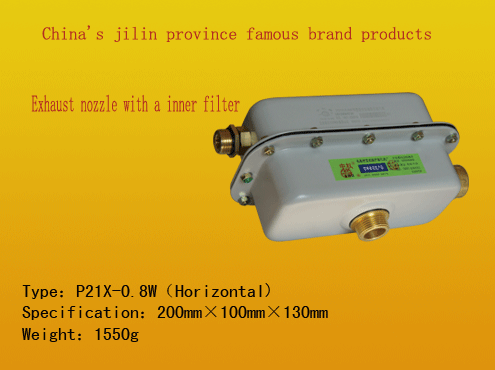

P21X‑0.8W Full‑Automatic Exhaust Valve for Horizontal Heating Pipes

This product has added new functions on the basis of the original P21X‑0.5W model. It features higher exhaust sensitivity, stronger pressure‑bearing capacity and easier installation. It is widely used for automatic air exhausting of various water‑medium systems in industrial & civil buildings, air‑conditioning units, vessels and other facilities.

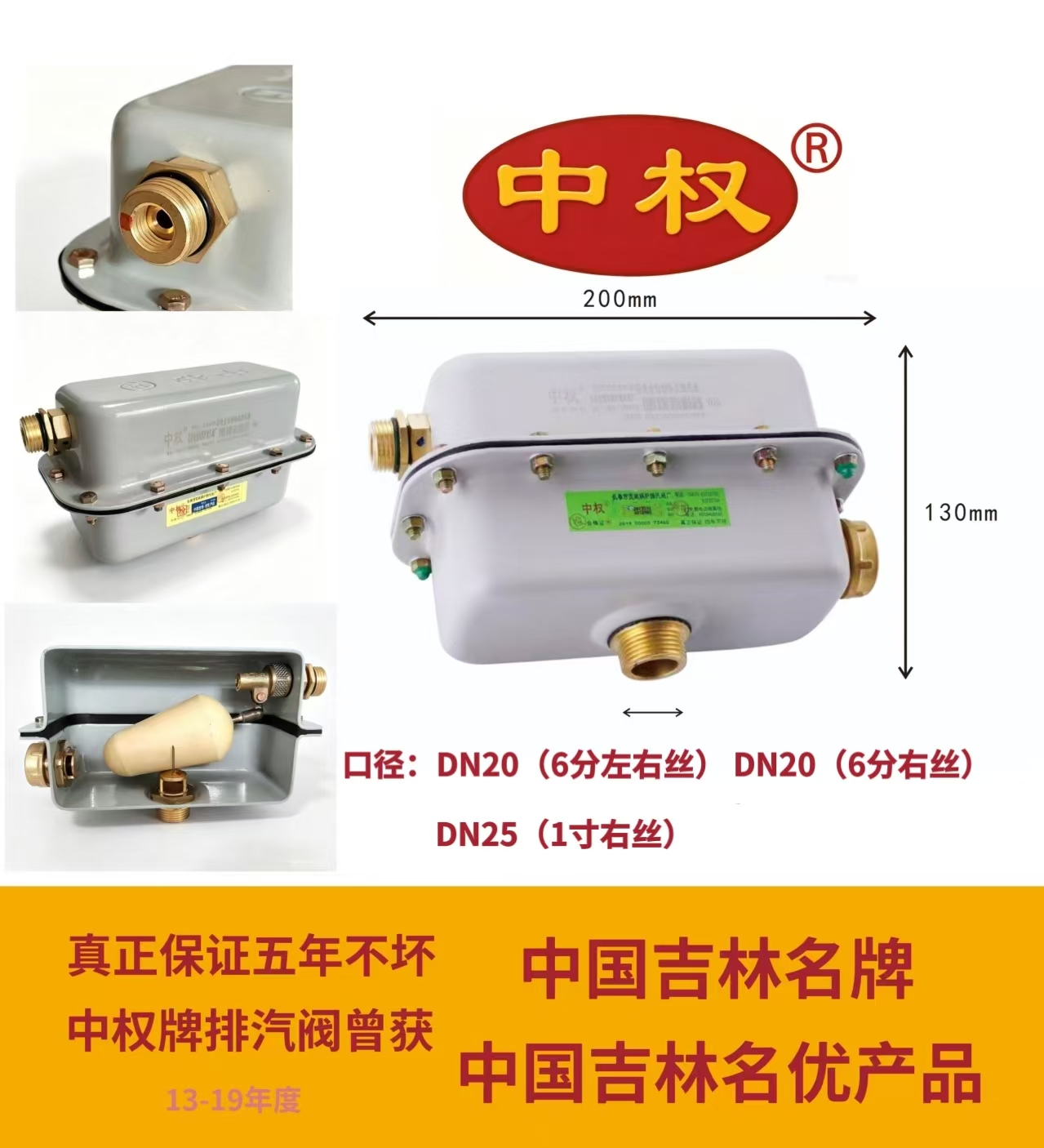

Working pressure: ≤0.8 MPa Applicable temperature: ≤109 ℃ Available exhaust bore: Ф2.6 mm Installation connection: ZG3/4″ (internal thread connection), G3/4″, ZG1″ Outline dimensions: Ф200 mm × 130 mm
